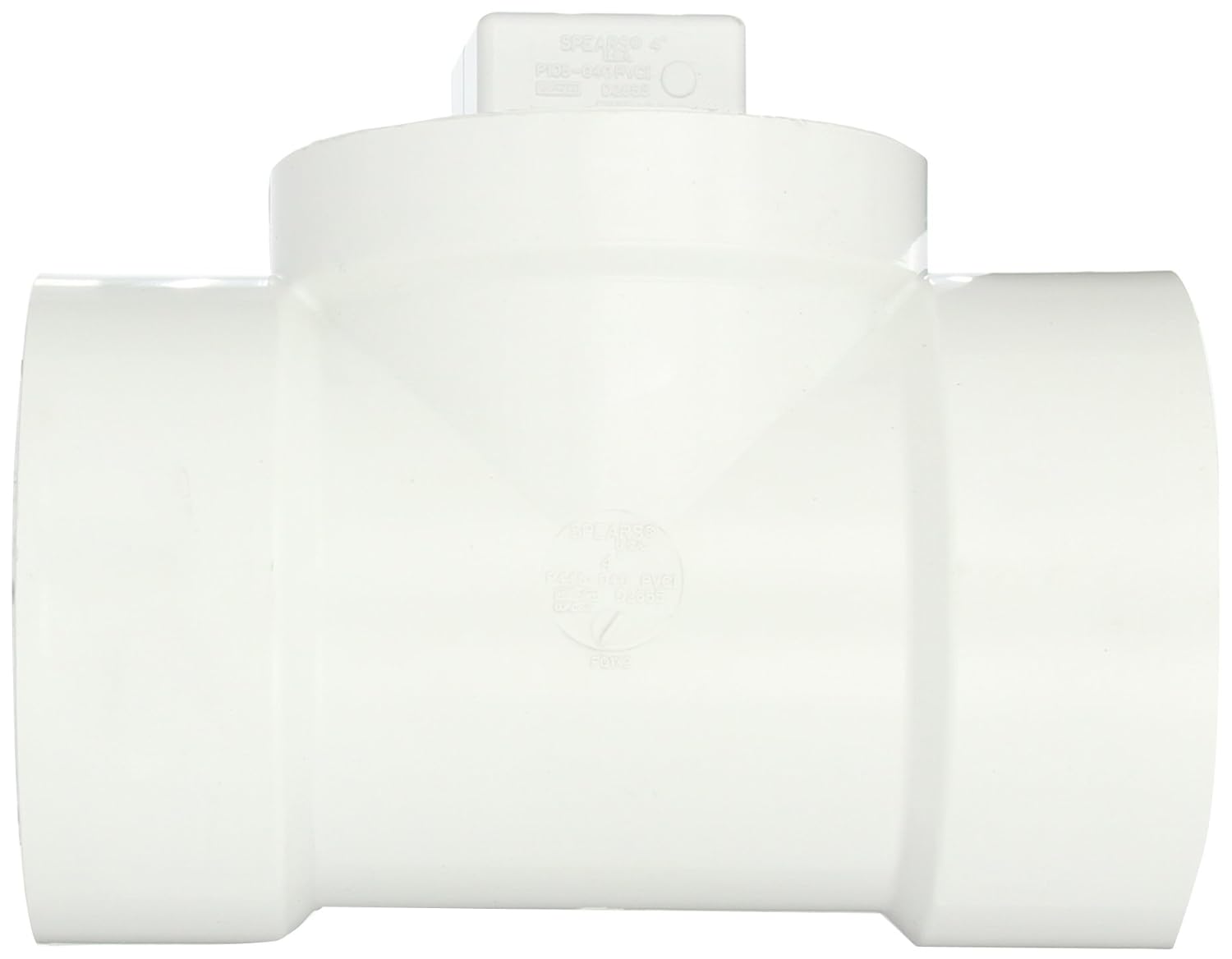

Spears P444X Series PVC DWV Pipe Fitting, Cleanout Tee with Plug, 4" Hub x 4" Hub x 4" NPT Female

The Spears P444X series DWV cleanout tee is made of PVC, has hub connections on the main run ends and a female NPT connection on the branch, comes with a cleanout plug, and has a cleanout port on the branch. It is suitable for waste water systems in residential applications. This vent tee fitting is T-shaped and has three ends to connect and branch two pipes on the main run and a cleanout port on the branch at a 90-degree angle from the middle of the tee. Pipe dimensions for tees are represented as A x B x C. “A” and “B” indicate the main run on the fitting, and “C” indicates the branch. The hub connections slide over the ends of male unthreaded pipe with a smooth bore for enhanced flow, and the National Pipe Taper (NPT) threaded end connects to male NPT threads for a tighter seal than straight threads. This cleanout plug fitting fits into the cleanout port to close the port and allow access to the system. This fitting is made of PVC (polyvinyl chloride) for use in non-pressure residential drain, waste, vent (DWV) sanitary systems. PVC resists corrosion and chemicals, exhibits high strength, and weighs less than fittings made from metal. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings. The fitting has an operating temperature range of 73 to 140 degrees F (23 to 60 C). This DWV cleanout tee with plug complies with American Society for Testing and Materials International (ASTM) D2665 and ASTM D3311 for quality assurance, is National Sanitation Foundation International (NSF)/American National Standards Institute (ANSI) Standard 14 certified to the Uniform Plumbing Code (NSF – U.P. Code) and NSF-dwv for quality assurance, and conforms with lead content requirements for "lead free" plumbing as defined by California and Vermont. It is suitable for waste water systems in residential applications.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness). Spears Manufacturing produces thermoplastic fittings and valves for fluid, drain, waste, and vent systems. The company, founded in 1969 and headquartered in Sylmar, CA, meets International Organization for Standardization (ISO) standard 9001.

• Tee with three ends for connecting and branching two pipes and a cleanout plug
• Hub connection on one end and female NPT threads on the other for connecting two pipes with different ends
• PVC for corrosion resistance, high strength, and less weight than fittings made from metal
• Operating temperature range of 73 to 140 degrees F (23 to 60 degrees C)
• Complies with ASTM D2665 and ASTM D3311 and certified to NSF/ANSI International Standard 14 (NSF-dwv) and NSF International Uniform Plumbing Code (NSF-U.P. Code)
