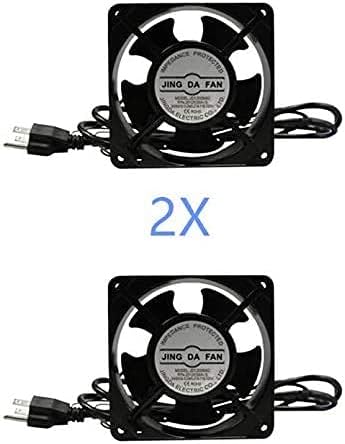

RAISING ELECTRONICS 2 Pieces Server Fan Cabinet Cooling System DIY Project Home Theater Network 19” Racks
4.3 (19 items)
Limited Time Sale$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216994763 | Release Date | 2026/04/19 | List Price | $9.60 | Model Number | 216994763 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Size: 120 * 120 * 38mm Working Voltage: AC110V-120V Current:0.14/0.21A Frequency: 50/60 (Hz) Power: 30.8/22 (W) Speed:2600/3000（RPM） Air flow:77/92（CFM） Pressure:6.6/7.5（mmH2O） Noise: 45/47 (dBA) Weight: 550 (g) Certification: CE ROSH SGS CCC ISO9001 Packing: Each one with one white box or As The customers’ requirement Material: Frame:: Aluminum Alloy with plastic-spraying/P.B.T Impeller: Plastic P.B.T. Coil:Enamelled copper wire Motor: Shade Pole Induction Motor Bear type: Ball bearing/Sleeve bearing Lead Type:Wire Lead /Terminal Performance: Insulation Resistance:10MΩ at 500VDC between lead and frame Operation Temperature:-20°C~80°C Dielectric Strength:1 min at 1500vac/50-60Hz,Current＜5mA Operation Humidity:20%~85% Use of life:Ball bearing 50,000 hours and Sleeve bearing 20,000 hours (at 25°C)
- Powerful one-fan Unit cooling system deliver exceptional thermal performance
- Help rack-mount equipment avoid overheating, performance problems, thus expand lifespans.
- Designed for various projects that requires cooling or ventilation

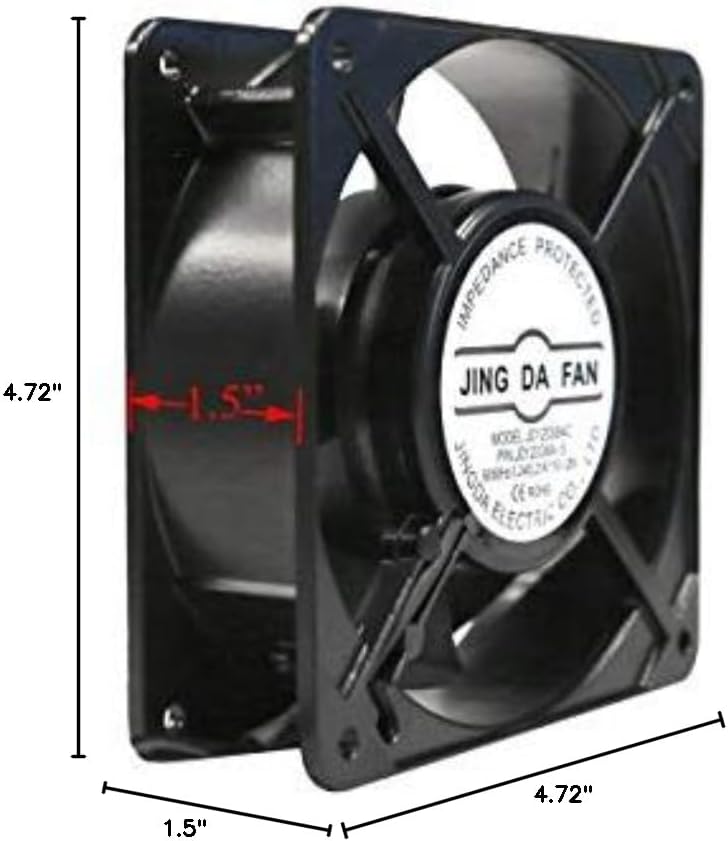

- Dimension: 1.5″H x 5″W x 5″D
- AC110V/120V 50/60Hz
| Voltage | 120 Volts |
|---|---|
| Brand Name | RAISING ELECTRONICS |
| Item Weight | 2.9 Pounds |
| Noise Level | 47 Decibels |
| Manufacturer | RAISING ELECTRONICS |
| Cooling Method | Air |
| Compatible Devices | Server |
| Maximum Rotational Speed | 3000 RPM |
| Item Dimensions L x W x H | 4.72"L x 1.5"W x 4.72"H |
