GenExhaust for Champion #90 3hole or 4hole 1-1/2" silicone tubing 4' long

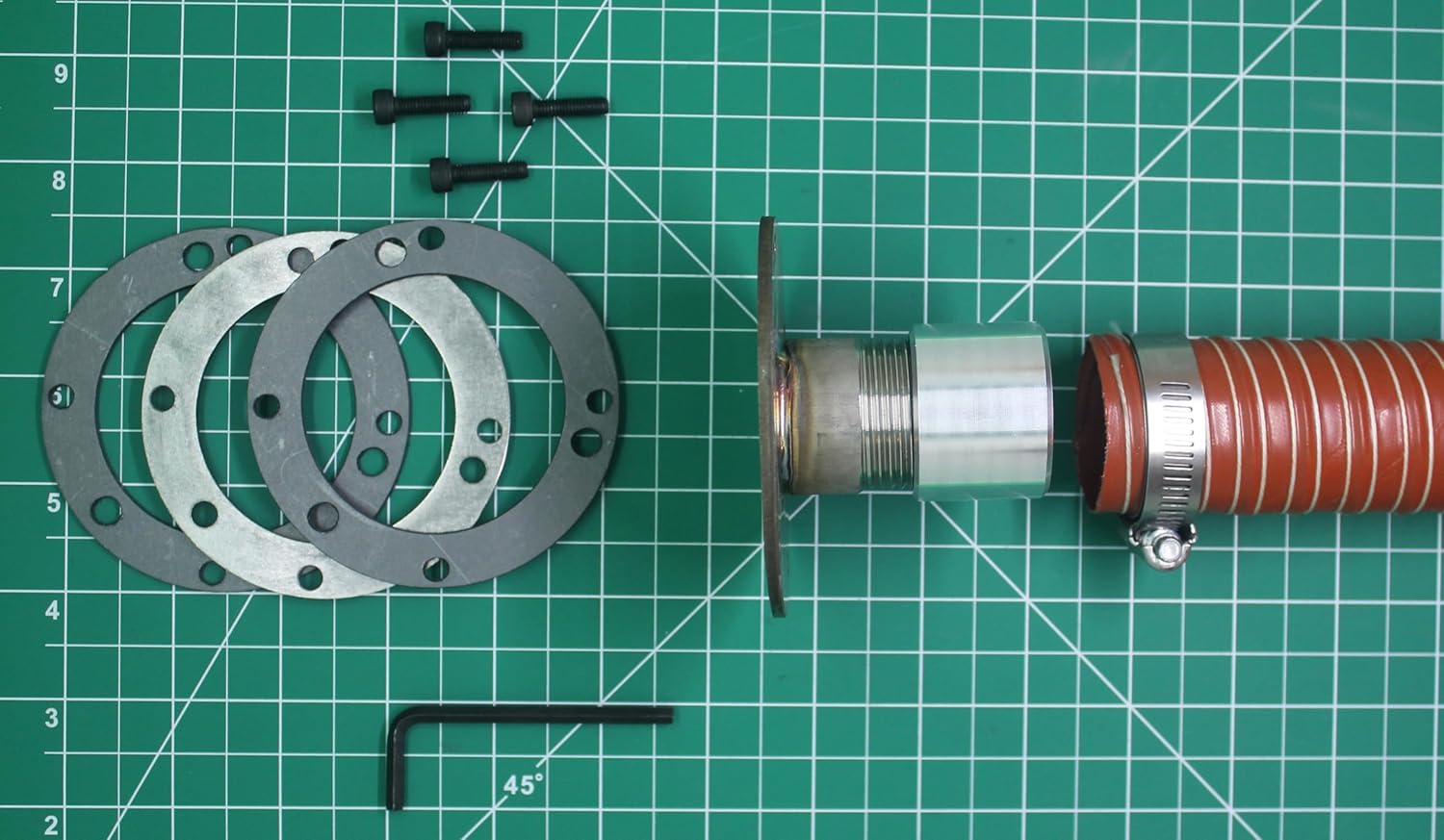

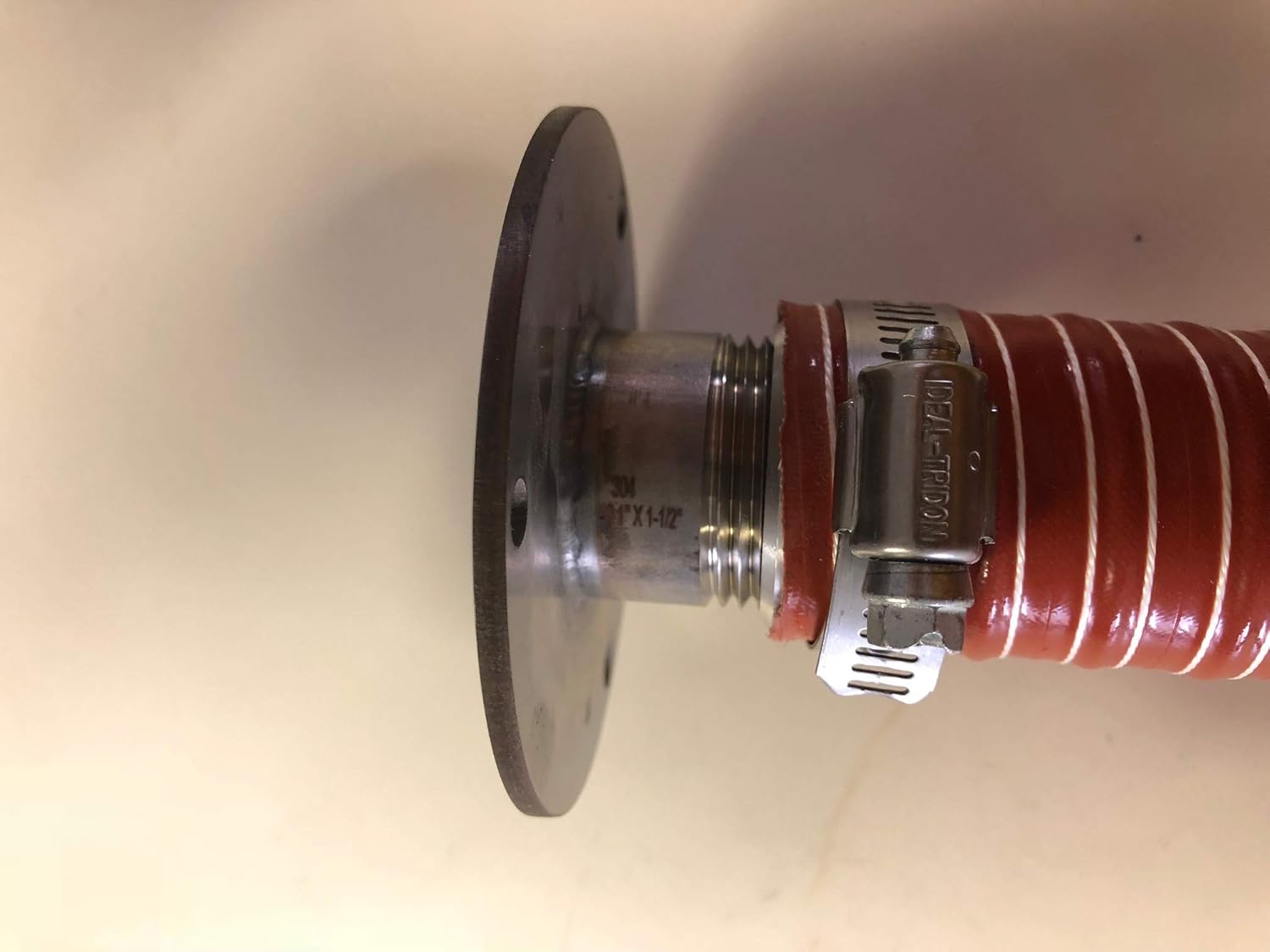

GenExhaust bolt on exhaust fitting for Champion Generators with #90 3-hole or 4-hole round generator exhaust extension allows for safe venting of exhaust fumes from an unoccupied enclosed area. This is designed for units that have three-hole spark arrester cover plate # 90 and also for round spark arresters with 4-holes. To verify this is the correct kit for the 3-hole version, please insure the screen cover has 'NO 90’ stamped on it. The buyer will receive: a custom low profile stainless steel exhaust stub, a custom stub to 1-1/2” ID tubing adapter, longer replacement screws, a high temperature stainless foil graphite gasket, the specified length of 1-1/2 I.D. flexible high temperature silicone lined exhaust tubing, and the proper size lined hose clamp. Known to fit the following Champion Model #s:41532, 41533, 41537, 41553, 100102, 100106, 100107, 100109, 100110, 100153, 100155, 100161, 100165, 100203, 100230, 100231, 100247, 100248, 100275, 100296, 100297, 100320, 100334, 100340, 100409, 100416, 100419, 100452, 100462, 100463, 100464, 100485, 100499, 100637, 100891, 200929, 201007, 201035, 201040, 201043, 201062, 201073, 201074, 201075, 201078, 201083, 201085, 201110, 201121, 201158, 201159, 201169, 201182, 201218 Know to fit the following Firman Model #s:P07505, P09201, P09301, P09305, T09371, T09275

• Known to fit the following Champion Model #s:41532, 41533, 41537, 41553, 100102, 100106, 100107, 100109, 100110, 100153, 100155, 100161, 100165, 100203, 100230, 100231, 100247, 100248, 100275, 100296, 100297, 100320, 100334, 100340, 100409, 100416, 100419, 100452, 100462, 100463, 100464, 100485, 100499, 100637, 100891, 200929, 201007, 201035, 201040, 201043, 201062, 201073, 201074, 201075, 201078, 201083, 201085, 201110, 201121, 201158, 201159, 201169, 201182, 201218
• Know to fit the following Firman Model #s: P07505, P09201, P09301, P09305, T09371, T09275
• The exhaust stub will need to be bolted onto the generator's stock muffler.
• The existing spark arrester will need to removed.
• Installation instructions will be provided.
